CRGO Core Lamination & Cutting Line SRJD400-214G
SRJD400-214G
An intelligent CRGO core lamination & cutting line integrating unwinding, feeding, punching/notching, pin-positioning pre-stacking and dual-robot core lamination. It can laminate two CRGO cores simultaneously in full “H” shape or “E+I” shape.
Proven in Production
Stability You Can Build Your Line Around
Performance that holds up long after installation

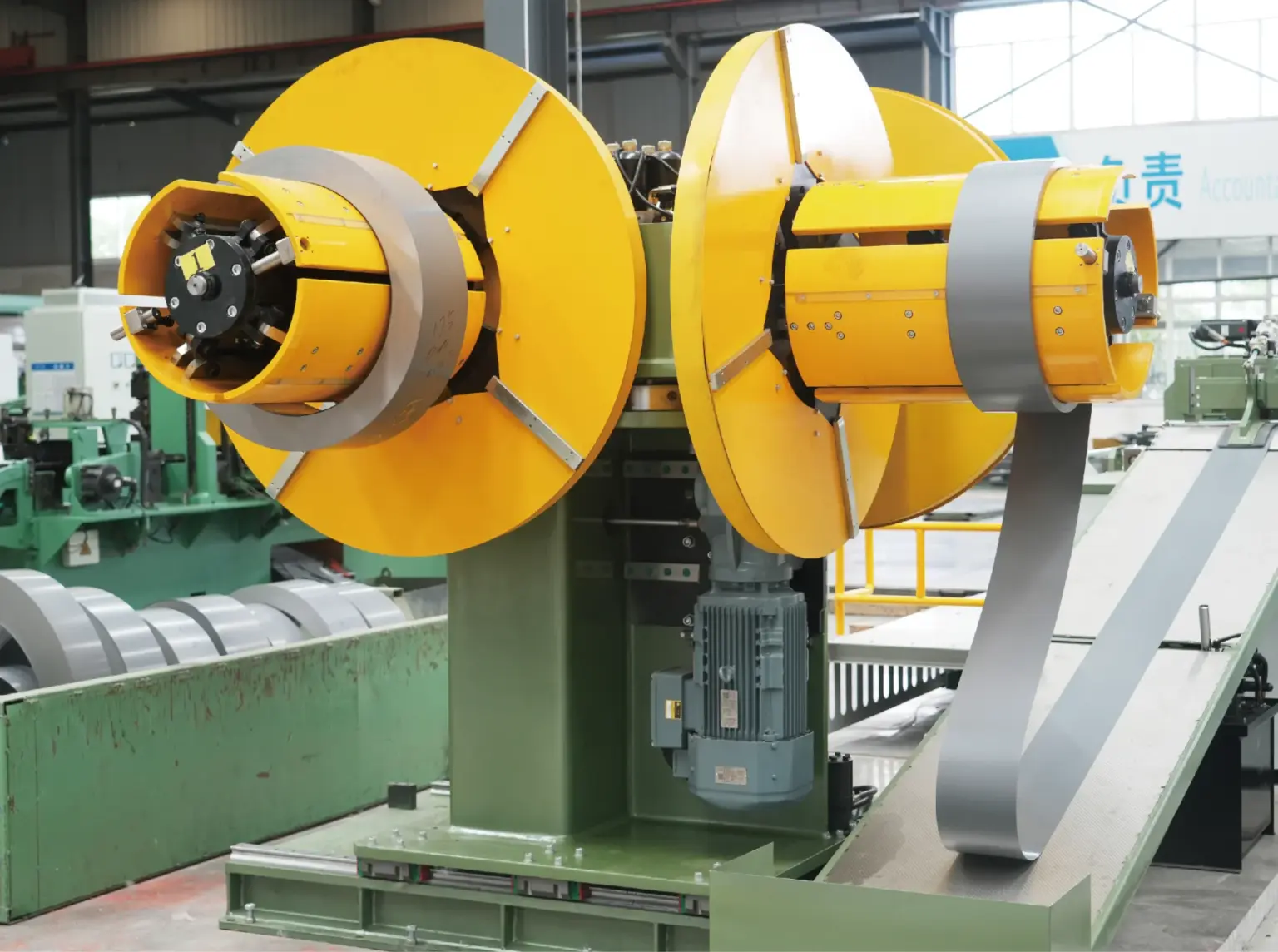

4-Head Hydraulic Decoiler
Load four coil widths at once with hydraulic tensioning and infrared centering—no pit required.Centralized 7-Tool Cutting

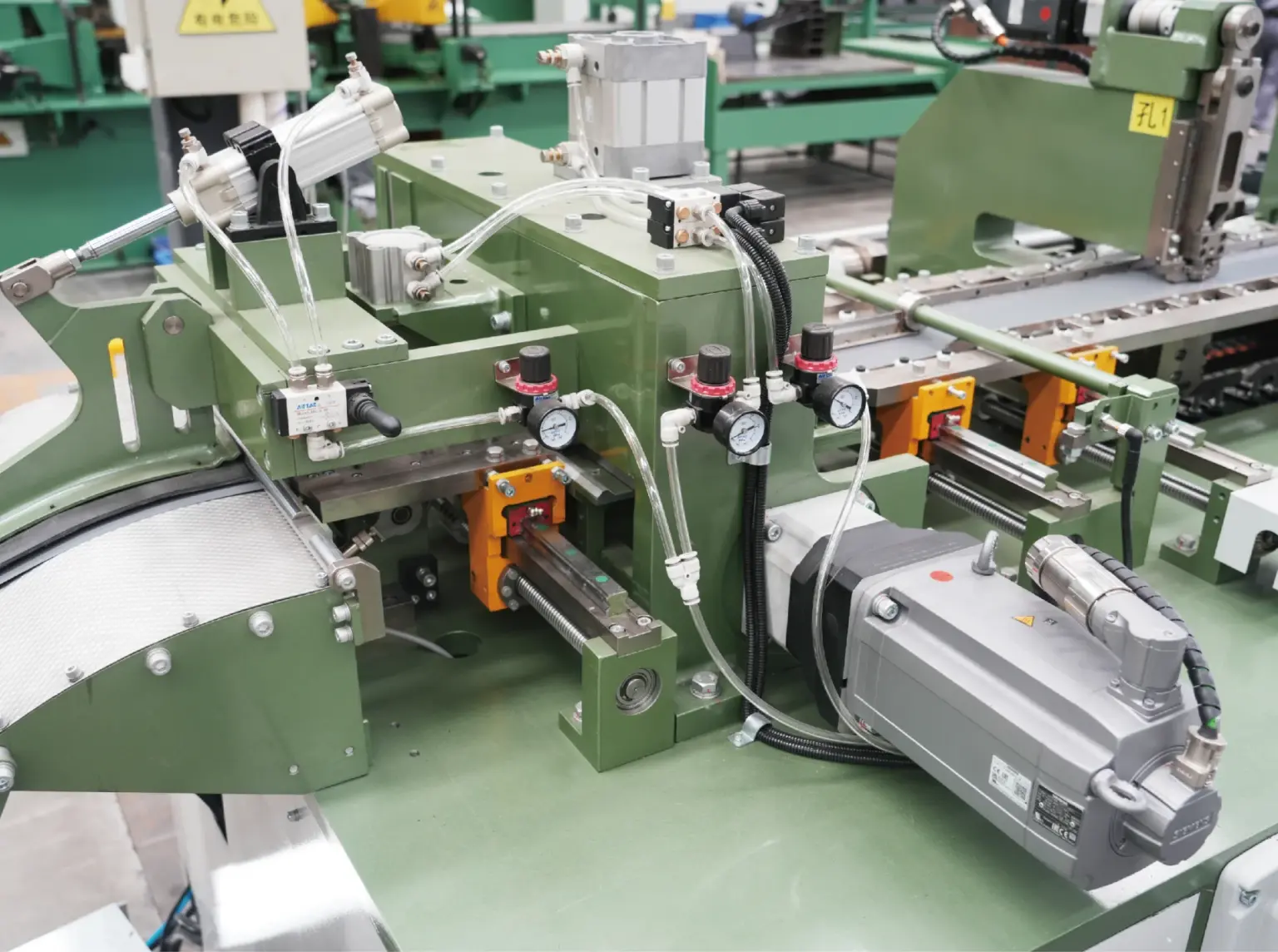

2 shearing + 1 V-notching + 4 hole-punching tools operate synchronously for maximum throughput.Servo-Driven Precision

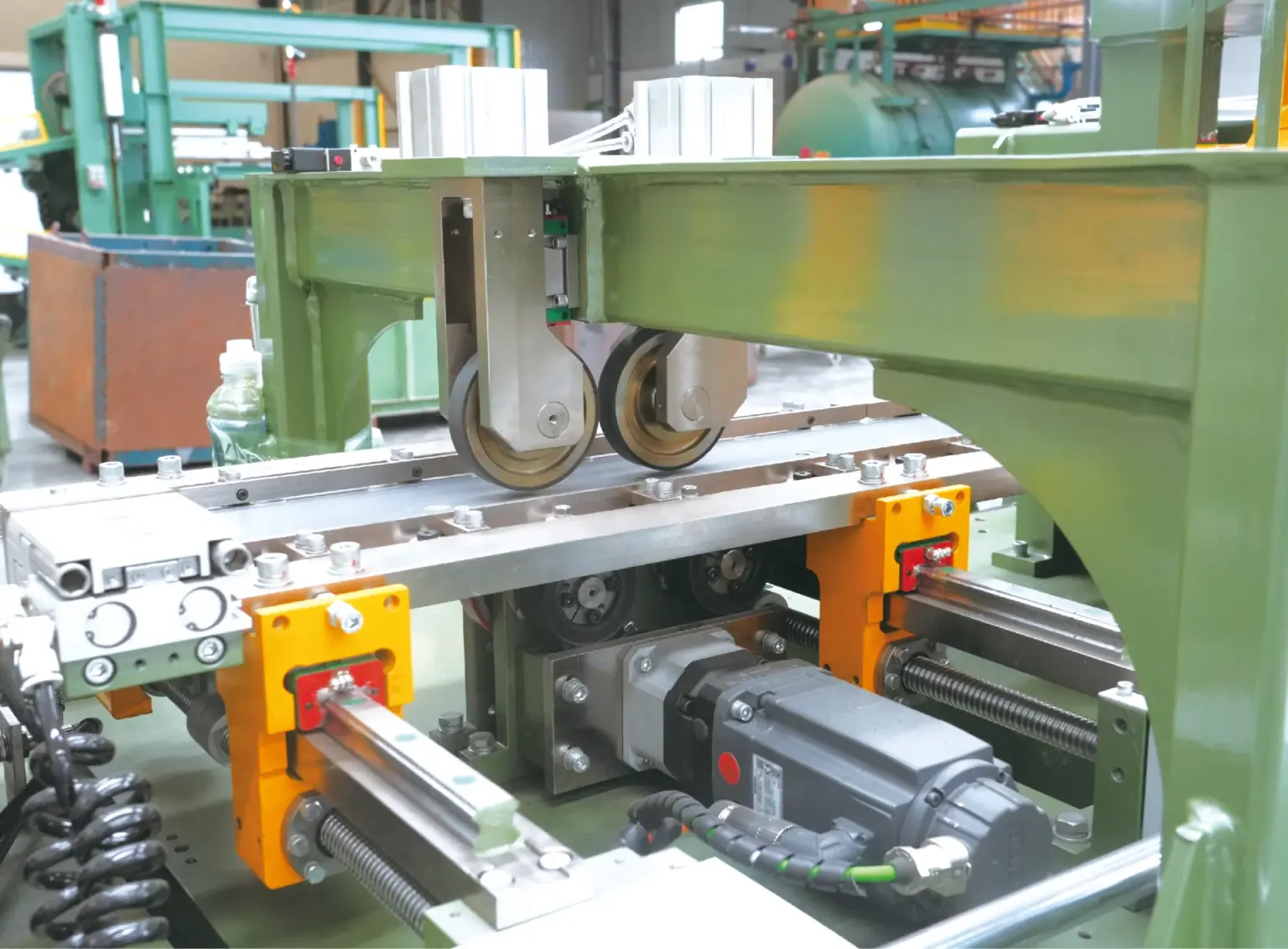

V-notching moves in X/Y axes; hole punching auto-positions by sheet length for repeatable accuracy.Smart Pre-Stacking

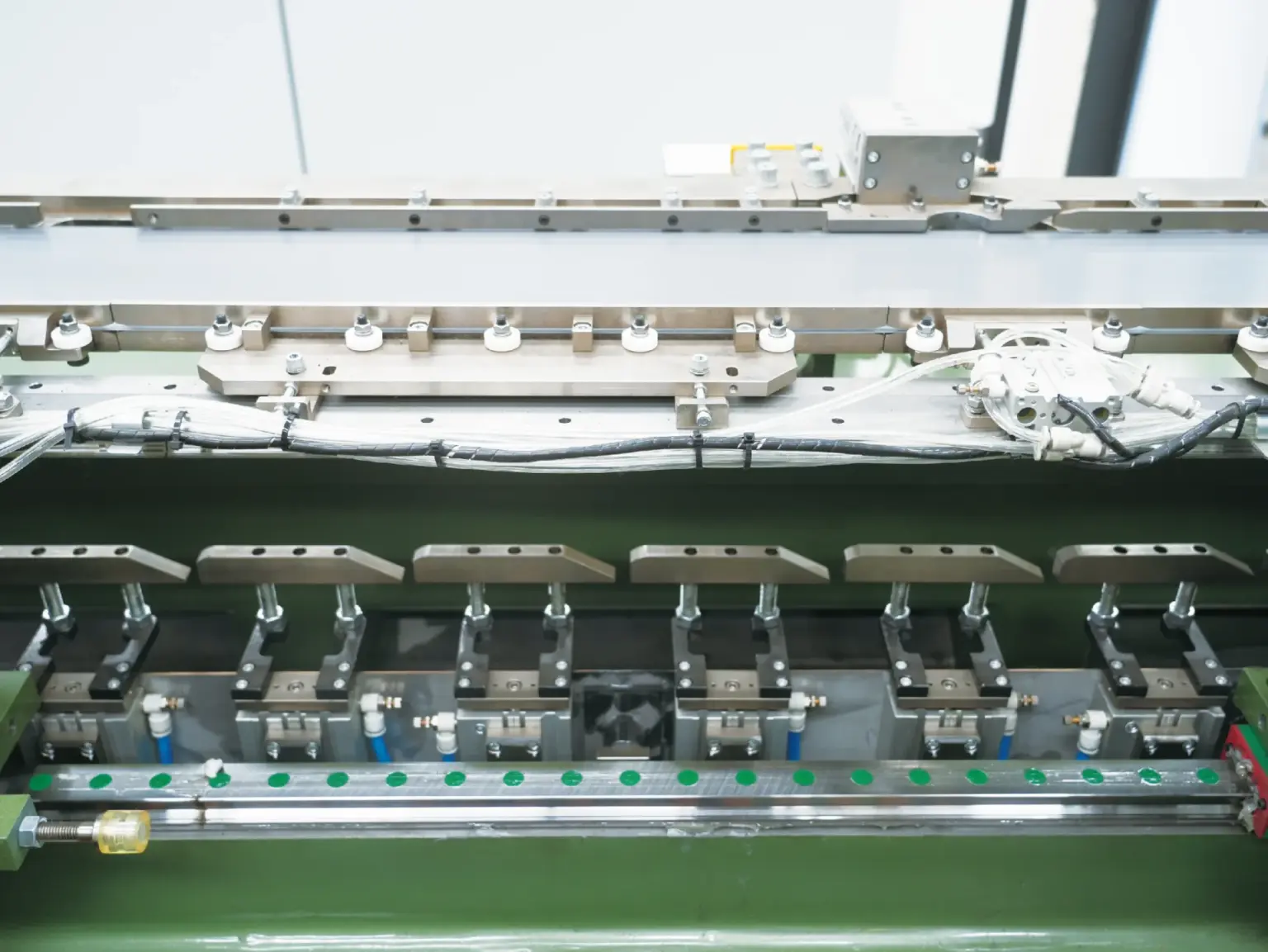

Magnetic reverse suction with photoelectric monitoring catches fly-outs and mis-drops automatically.Dual-Robot Lamination
Two robots alternate between left/right tables—no line stoppage during core changeover.Remote Diagnostics
Online program upgrades and air-conditioned control cabinet keep electronics reliable year-round.
Core Specifications
Sheet Thickness
Processes sheets from 0.18 to 0.30 mm for precision transformer core lamination
Max Feeding Speed
Achieves up to 210 m/min for high-throughput continuous production
Cutting Length Accuracy
Maintains ±0.15 mm tolerance ensuring consistent core geometry
Lamination Output
Completes 2 full transformer cores per 8-hour shift with dual-robot operation
Machine Overview
Designed for Real Production Environments
A closer look at structure, layout, and build quality — beyond surface details
