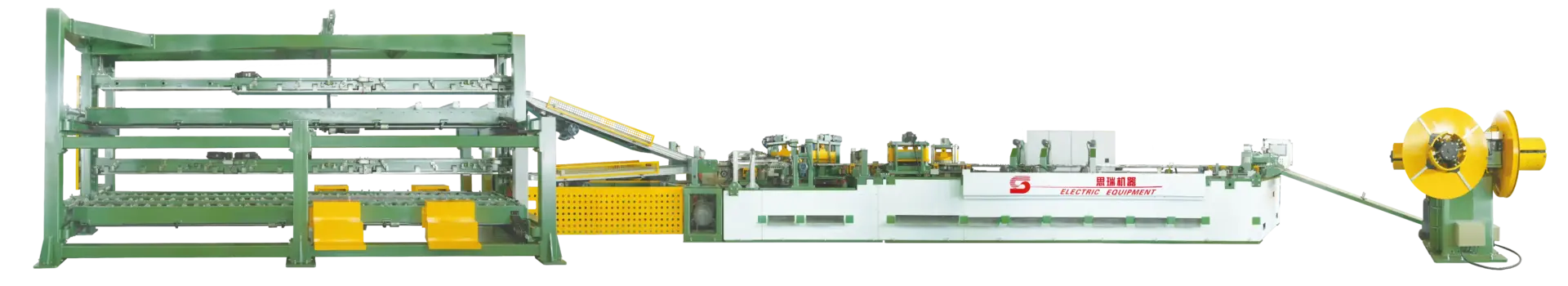

Silicon Steel Sheet Cut-To-Length Line SRHJ400-223C
SRHJ400-223C
Transformer-core cut-to-length line with upper & lower log stacking arms. The upper arm stacks 2 logs and the lower arm stacks 3 logs, forming 5 logs (2 yokes, 2 side legs, 1 center leg) for a complete core lamination in one assignment.
Proven in Production
Stability You Can Build Your Line Around
Performance that holds up long after installation
Dual Stacking Arms
Upper arm handles 2 logs; lower arm handles 3—total 5 logs per core.Complete Core Set
Produces 2 yokes + 2 side legs + 1 center leg in a single cutting cycle.3 Roller Lines
Connected conveyors feed and transport all logs seamlessly through the process.Expandable Capacity
System can be extended to stack additional logs based on core design requirements.Optimized Workflow
One assignment yields a full lamination set—reduces handling and staging time.Flexible Integration
Designed to connect upstream shearing with downstream lamination stations.
Core Specifications
Stacking Arms
Dual-level design with upper arm (2 logs) and lower arm (3 logs)
Logs per Assignment
Produces all 5 logs for complete core set in single cutting cycle
Roller Lines
3 connected conveyor lines for seamless log transport and handling
Core Structure
Outputs 2 yokes, 2 side legs and 1 center leg per transformer core

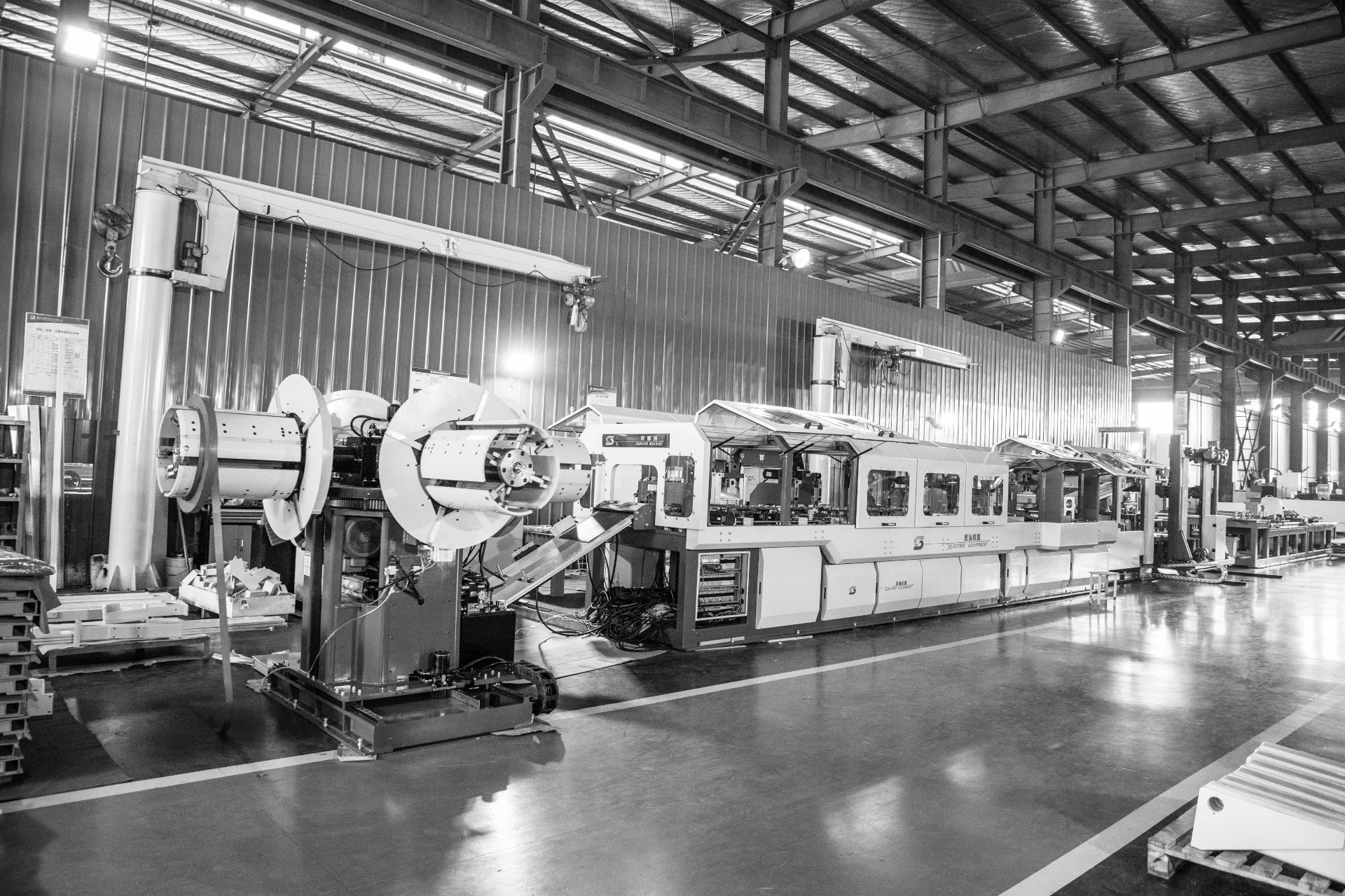

Machine Overview
Designed for Real Production Environments
A closer look at structure, layout, and build quality — beyond surface details
